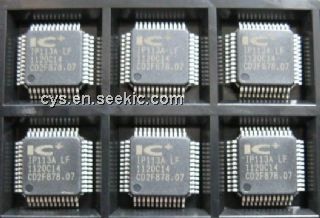

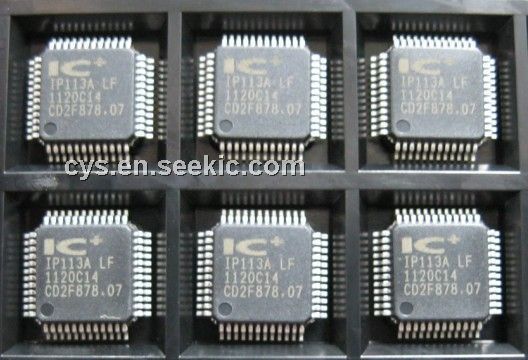

Product Summary

The IP113A-LF is a 10 /100Base-Tx/Fx media converter. The IP113A-LF can be a 10/100BASE-TX to 100BASE-FX converter. The IP113A-LF consists of a 2-port switch controller, a fast Ethernet transceiver and a PHY for 100BASE-FX. The transceivers in IP113A-LF are designed in DSP approach with advance 0.25-um technology; this results in high noise immunity and robust performance.

Parametrics

IP113A-LF absolute maximum ratings: (1) Supply Voltage: -0.3 to Vcc +0.3V; (2) Input Voltage: -0.3 to Vcc +0.3V;(3) Output Voltage: -0.3 to Vcc +0.3V; (4) Storage Temperature: -55 to 125°C; (5) Ambient Operating Temperature (Ta) : 0 to 70°C .

Features

IP113A-LF features: (1) A 10/100BASE-TX/ 100BASE-FX converter; (2) Built in a 10/100BASE-TX transceiver; (3) Built in a PHY for 100BASE-FX; (4) Built in a 2-port switch; (5) LED display for link/activity, full/half, 10/100; (6) Built in a watchdog timer to monitor internal switch error; (7) 48-pin LQFP package; (8) Support Lead Free package (Please refer to the Order Information) .

Diagrams

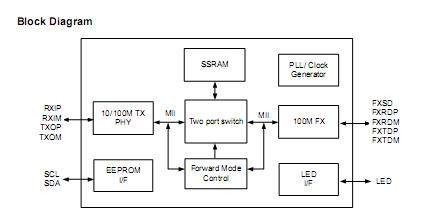

IP113A-LF Block Diagram
