Product Summary
The IP3210-LF is monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic surface mount package. General controller for driving lamps, motors, solenoids, heaters are applications of the IP3210-LF.
Parametrics
IP3210-LF absolute maximum ratings: (1) Continuous supply voltage VBG: 0 to 50V; (2) I Continuous load current IL: 20A (Tmb≤95°C) ; (3) Total power dissipation PD, Tmb≤25°C: 67W; (4) Storage temperature Tstg: -55 to 175°C; (5) Continuous junction temperature Tj: 150°C; (6) Mounting base temperature Tsold: 260°C; (7) Continuous reverse voltage -VBG: 16V; (8) Peak reverse voltage -VBG: 32V; (9) Continuous currents: -5 to 5mA; (10) Repetitive peak currents: -50 to 50mA; (11) Non-repetitive clamping energy: 150mJ.
Features
IP3210-LF features: (1) Vertical power TrenchMOS; (2) Low on-state resistance; (3) CMOS logic compatible; (4) Very low quiescent current; (5) Latched overload and short circuit protection; (6) Voltage clamping for turn off of inductive loads; (7) ESD protection on all pins; (8) Reverse battery, overvoltage and transient protection.

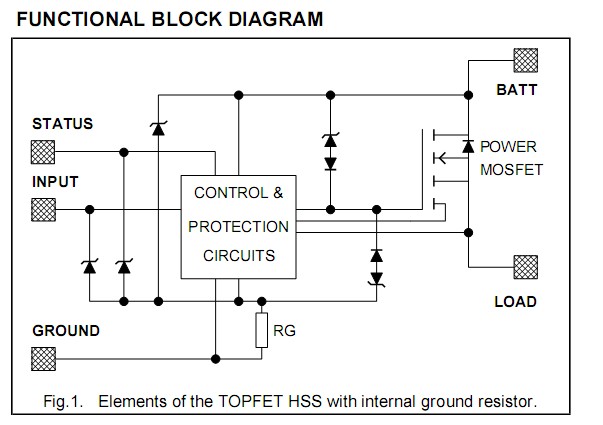

Diagrams
