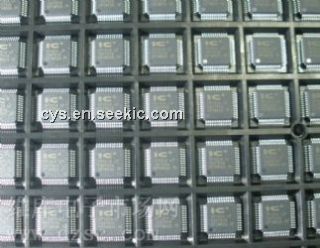

Product Summary

The IP175CH-LF is a 5 port 10/100 ethernet integrated switch. The integrates a 6-port switch controller, SSRAM, and 5 10/100 Ethernet transceivers. The IP175CH-LF operates in store and forward mode. The IP175CH-LF supports flow control, auto MDI/MDI-X, CoS, port base VLAN, bandwidth control, DiffServ, SMART MAC and LED functions, etc.


IP175CH-LF absolute maximum ratings: (1) Supply Voltage: -0.3 to 4.0V; (2) Input Voltage: -0.3 to 5.0V; (3) Output Voltage: -0.3 to 5.0V; (4) Storage Temperature: -65 to 150°C; (5) Ambient Operating Temperature (Ta) : 0 to 70°C.


IP175CH-LF features: (1) IP175A PCB compatible (pins compatible) ; (2) Built in 6 MAC and 5 PHY; (3) Each port can be configured to be 10Base-T100Base-TX; (4) 384k bits packet buffer memory; (5) Filter/ forward reserved address option; (6) Support SMI with MDC up to 12.5 Mhz ; (7) Support Port base VLAN & tag VLAN; (8) Built in linear regulator control circuit; (9) Low power consumption; (10) 0.18um, 128-pin PQFP; (11) Support Lead Free package (Please refer to Order Information) .


IP175CH-LF Pin Configuration
