Product Summary
The NJM2207S is a video signal superimposer, with synchronous separation circuit, vertical sinchronous reproduce circuit and two video high performance switches for switching from video signal to character signal and background signal. The NJM2207S is suitable for simply indicating the date time, TV channel and others.
Parametrics
NJM2207S absolute maximum ratings: (1) supply voltage V: 17V; (2) Power Dissipation, PD: 500mW (ZIP16) , (DIP14) 700mW, 300mW (DMP14) ; (3) Operating temperature range Topr: -40 to +85°C; (4) Storage temperature range Tstg: -40 to +125°C.
Features
NJM2207S features: (1) (1) operating voltage: +4.75 to +13V; (2) With synchronous speration circuit; (3) with vertical sinchronous reproduce circuit; (4) range outline: DIP-14, DMP-14, ZIP-16; (5) biploar technology.

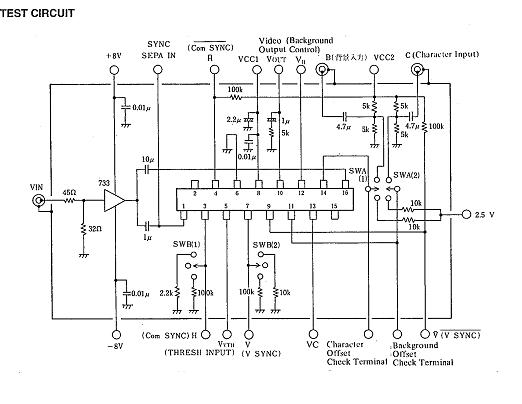

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2207S |
NJR |
Video ICs Super Imposer |
Data Sheet |
Negotiable |
|
||||||||||||
