Product Summary
The ATMEGA32L-8PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA32L-8PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA32L-8PU absolute maximum ratings: (1) Operating Temperature: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) Voltage on any Pin except RESET with respect to Ground: -0.5 to Vcc +0.5V; (4) Voltage on RESET with respect to Ground: -0.5 to +13.0V; (5) Maximum Operating Voltage: 6V; (6) DC Current per I/O Pin: 40mA; (7) DC Current Vcc and GND Pins: 200mA.
Features
ATMEGA32L-8PU features: (1) High-performance, Low-power AVR 8-bit Microcontroller; (2) Advanced RISC Architecture; (3) Nonvolatile Program and Data Memories; (4) JTAG (IEEE std. 1149.1 Compliant) Interface; (5) Real Time Counter with Separate Oscillator; (6) CFour PWM Channel; (7) Programmable Watchdog Timer with Separate On-chip Oscillator; (8) Power Consumption at 1 MHz, 3V, 25°C.

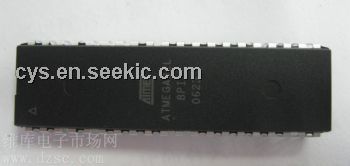

Diagrams
P
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATmega32L-8PU |
Atmel |
8-bit Microcontrollers (MCU) 32kB Flash 1kB EEPROM 32 I/O Pins |
Data Sheet |
|
|
|||||||||||||
