Product Summary
The IP101A-LF is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. The IP101A-LF supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost. The IP101A-LF transceiver is fabricated with advanced CMOS technology, which the chip only requires 3.3V as power supply and consumes very low power in the Auto Power Saving mode.
Parametrics
IP101A-LF absolute maximum ratings: (1) 3.3V Supply voltage, Vcc: 3.0 to 3.6V; (2) Operating Temperature TA: 0 to 70°C.
Features
IP101A-LF features: (1) 10/100Mbps TX; (2) Full-duplex or half-duplex; (3) Supports Auto MDI/MDIX function; (4) Fully compliant with IEEE 802.3/802.3u; (5) Supports IEEE 802.3u auto-negotiation; (6) Supports MII / RMII / SNI interface; (7) Supports flow control to communicate with other MAC through MDC and MDIO; (8) 0.25u, CMOS technology; (9) 48-pin LQFP; (10) Support Lead Free package (Please refer to the Order Information) .

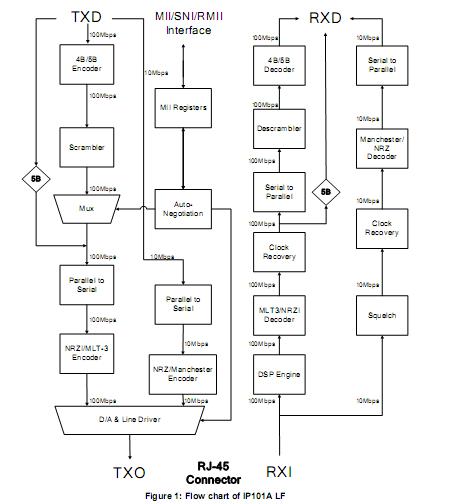

Diagrams
